5700K 1000w LED Stadium Lights IP67 Waterproof Level For Football Field

Product Categories
Xi'an Razorlux Optoelectronic Technology Co., Ltd.
Contact Now

5700K 1000w LED Stadium Lights IP67 Waterproof Level For Football Field

Brand Name : Razorlux

Model Number : RGL-1000P-L15

Certification : ce, LVD, RoHS, Saa

Place of Origin : Shaanxi, China

Price : $1,250.00/Pieces >=1 Pieces

Supply Ability : 5000 Piece/Pieces per Month

Packaging Details : 1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units

Color Temperature(CCT) : 5700K (2700 ~ 6500K available on request)

Lamp Luminous Efficiency(lm/w) : 100

Support Dimmer : YES

Lighting solutions service : Lighting and circuitry design, DIALux evo layout

Working Time (hours) : 50000

Input Voltage(V) : 80 ~ 360Vac, 400 ~ 600Vac

Beam Angle(°) : 15° 20° 60° 120° 140°X60°, 15° 20° 60° 120° 140°X60°

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum & Powder coating

Application : Sports Stadiums

Light Source : LED

Lamp Luminous Flux(lm) : 100,000 lm, 100,000 lm

Working Temperature(℃) : -40C~60C/40F~140F, -40C~60C/40F~140F

Warranty(Year) : 5-Year

Product Name : football field 1000 watt led flood light

Power : 1000w

Color Temperature : 5700K (2700 ~ 6500K available on request)

Housiong Material : Aluminum

IP Class : IP 67

Color Rendering : ≥Ra75

Warranty : 5Years

Port : Tianjin

Contact Now

5700K 1000w LED Stadium Lights IP67 Waterproof Level For Football Field
New technique chip technology outdoor garden lighting system ip67 Flood Lights For Football Field.

Model

1000P-L15
1000P-L20
1000A-L60
1000A-L120
1000A-L140
Beam Angle

15°
20°
60°
120°
140°x60°
Stable Flux
 (5700K after 1 hour)

100,000 lm
105,000 lm
110,000 lm
120,000 lm
 102,000 lm
Dimension (mm)

671x405x374mm  671x405x322mm  671x405x204mm





Power Consumption
LEDs
900W





Driver
100W





Total
1,000W




Replace HID Lamp

2000 ~ 3000W




Net Weight

29kg (64lbs) with stainless steel floodlight bracket




Color Temperature

5700K (2700 ~ 6500K available on request)




Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)




Working Life

≥50000Hrs




Housing Material

Aluminum




Coating

Zinc Rich Paint




IP Class

IP 65 (Upgradeable to IP 67)




Insulation Class

Class I




Working Temperature

-40 ~ 60C / -40 ~ 140F




Working Humidity

10% ~ 95%




AC Input

80 ~ 360Vac, 400 ~ 600Vac




DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc




THD

<10%




Power Factor

≥0.98





Warranty
LED Module
5 year





Driver
 5 year





Housing
10 year

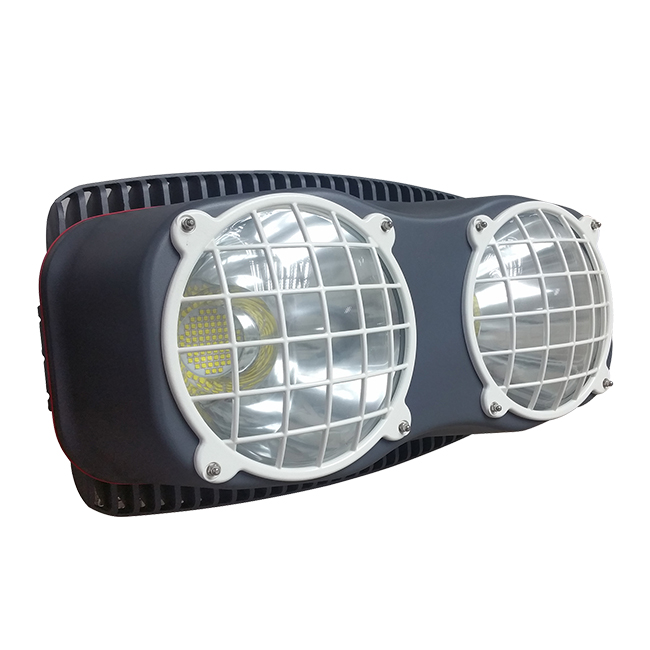

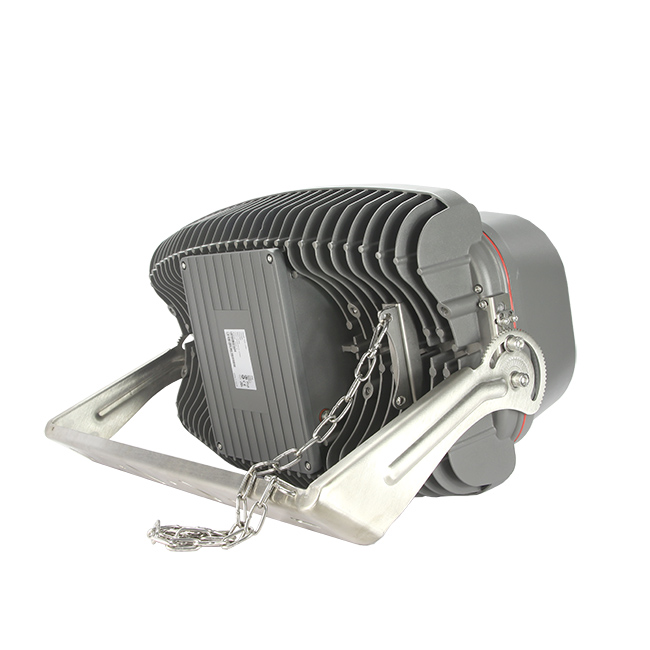

5700K 1000w LED Stadium Lights IP67 Waterproof Level For Football Field




5700K 1000w LED Stadium Lights IP67 Waterproof Level For Football Field
5700K 1000w LED Stadium Lights IP67 Waterproof Level For Football Field


Features & Specifications of Flood Lights For Football Field

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

Advantages of Flood Lights For Football Field.

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available
  • Safety chains
  • UL, DLC, CE, ROHS, EAC, SAA, C-Tick certified.

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.



7. Do you provide free sample:

The sample we provided based on the basic price, we welcome customer to take sample or trial order as the begining of our business relationship.
