Super High Power IP67 Boat Docking Lights Spreader 48000lm 400W

Xi'an Razorlux Optoelectronic Technology Co., Ltd.
Contact Now

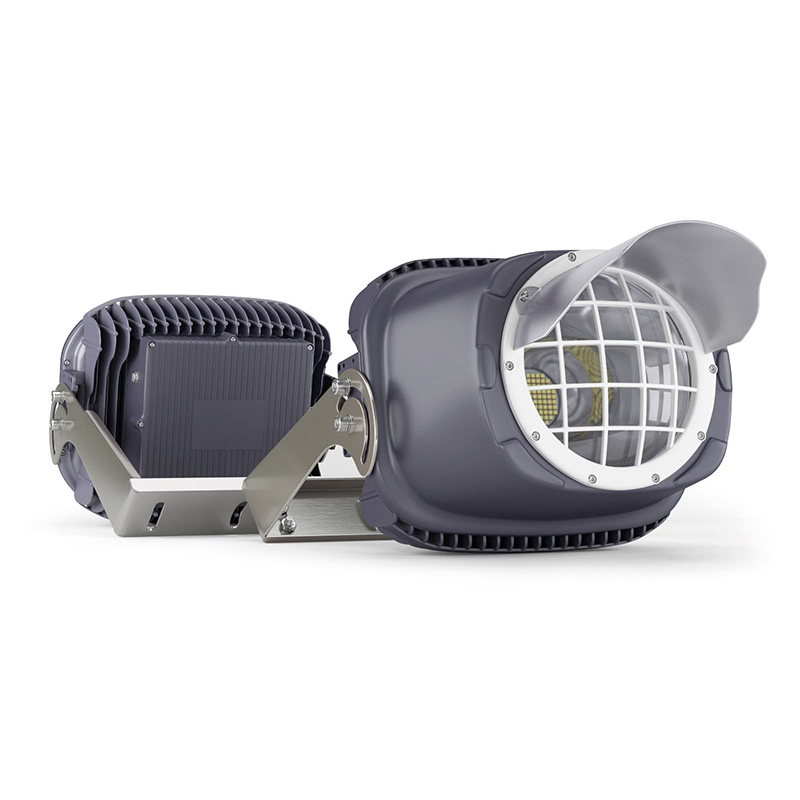

Super High Power IP67 Boat Docking Lights Spreader 48000lm 400W

Place of Origin : China

Brand Name : Razorlux

Model Number : RGL2-400P

Certification : ce, RoHS

Packaging Details : 1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*560mm
3.One 20'' Container can accept 250 Units

Price : $787.00/Pieces

Item Type : Pool Lights

Lighting solutions service : Lighting and circuitry design, DIALux evo layout

Input Voltage(V) : 80~305Vac,180-528vac

Lamp Power(W) : 400

Lamp Luminous Flux(lm) : 120, 48000lm

CRI (Ra>) : 75

Working Temperature(℃) : -40 - 60, -40 - 60

Working Lifetime(Hour) : 50000

Lamp Body Material : Aluminum Alloy

Product Name : Boat LED Lights

Lamp Luminous Efficiency(lm/w) : 120

Warranty : 5Years

Housiong Material : Aluminum

IP Class : IP 65 (Upgradeable to IP 67)

Contact Now

Super High Power 120lm/w Aluminum 400W Boat LED Lights

Description:



Designed to provide exceptional lighting in the fiercest environments, Razorlux LED Flood Lights are perfect for use in shipyards, on commercial craft, and in blue or brown water applications.



With a variety of beam angles ranging from 8 to 120 degrees, and available in power sizes ranging from 30 to 1000 watts, Razorlux Flood Lights are specially treated to resist corrosion and are salt spray resistant so you can be assured of rugged dependability and long-life, while enjoying exceptional light output.



Features:



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 400W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index





Super High Power IP67 Boat Docking Lights Spreader 48000lm 400W





Parameters:



Model RGL2-400P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

48000lm
Dimension (mm) 466*388*487
  LEDs 360W
Power  Driver 40W
Consumption  Total 400W
Replace HID Lamp 400~600W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year






 Super High Power IP67 Boat Docking Lights Spreader 48000lm 400W



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.



Application:



Commercial Vessels. Suitable for use on tugboats, towboats, passenger ferries, fishing vessels, trawlers and barges.

Marine applications: Walkways, doorways and stairwells on the deck and interior of vessels, as well as perimeter deck lighting


Mining applications: Perimeter and walkway lighting on large mining equipment like shovels and draglines, machine, electrical and engine rooms, as well as any dusty or dirty location




Industrial: Parking garages, carwashes, transportation centers, subways, swimming pools, locker rooms, automotive repair facilities as well as food processing facilities, including walk-in freezers, and industrial kitchens





FAQ:



Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.

Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K

Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC

Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS

100-130 LM/W Differs with different series



Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series

Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests

Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.

Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control

Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.

Q10: Can I have our LOGO on the products and packages?
A: Yes.

Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
